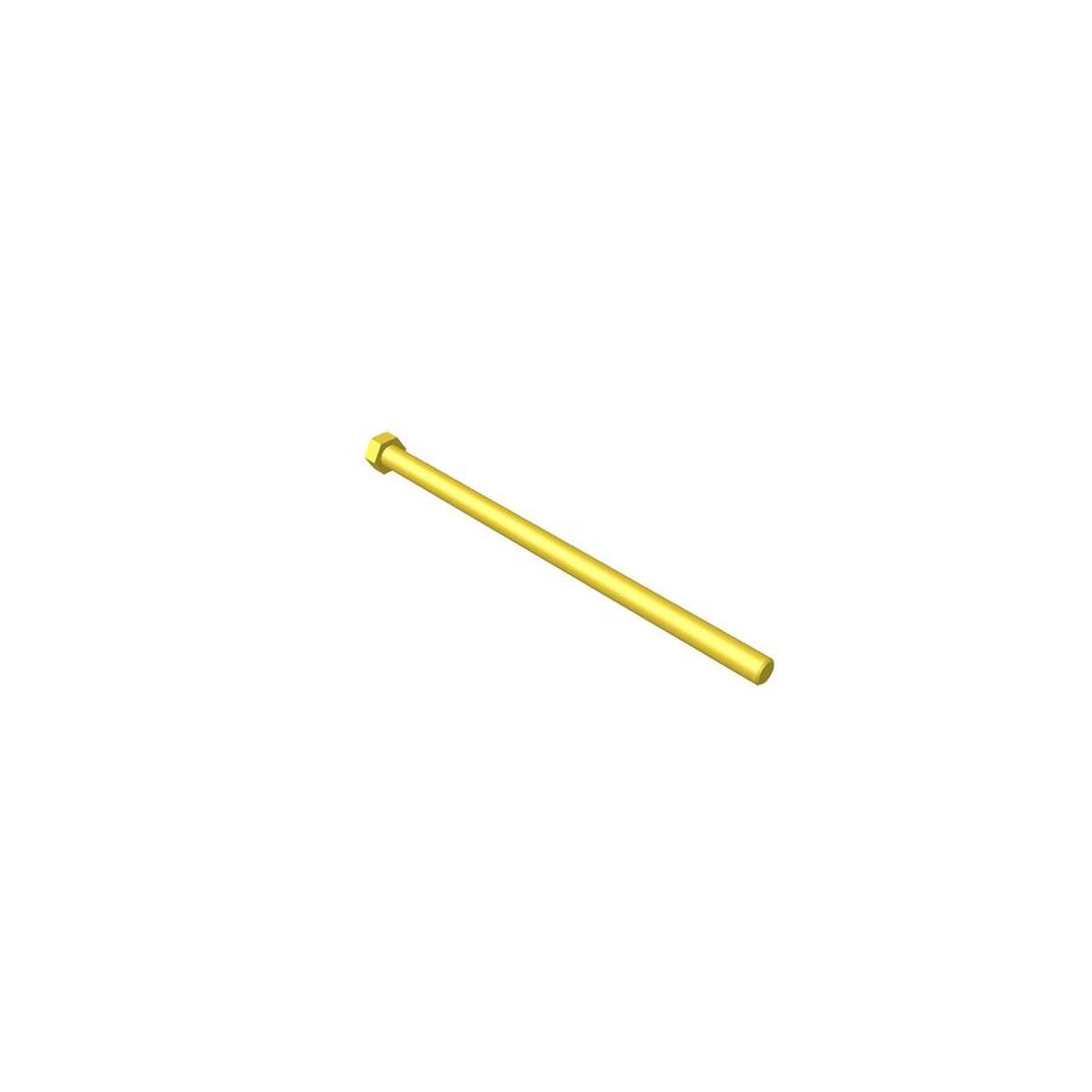

• TYPE:TORO OEM Hex Head Bolt
• SIZE:3/8 x 7.38 – 16 Standard Thread Pattern
• APPLICATIONS:Primarily Used in the Dual or Double Anti-Scalp Wheels in the Center of the Mower Deck
• COMMON SERIES APPLICATIONS: Select Current TITAN Standard, My-Ride Models(Models with I-Beam Framing)-Current TITAN MAX Models(Models with I-Beam Framing)–Late TITAN HD Models(1500, 2000, 2500 – Standard & My-Ride – Models with Tube Style Framing)–Late/Current 60″ Grandstand Standard, Multi-Force, Revolution Models–Current Grandstand 52″, 60″ & 72″ HDX Models-Current/Late ZMaster 2000 Models(Tube Style Framing & I-Beam Framing)–Current/Late/Early ZMaster Z, 3000, 4000, 5000, 6000, 7000, 7500, Revolution Models–GroundMaster & Older Walk-Behind Models.

*Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.

NOTE:*108-5388Anti-Scalp Wheel Spanner Bolt is Primarily Used in The Center of The Mower Deck on Models with Dual or Double Anti-Scalp Wheels. To Ensure a Correct Fit, Review the Model Fit Chart and Measurements in the Images and the Specification Chart in Comparision with the Needed replacement if this still Prove to be un-helpful feel free to Reach out to us here at Hilly Ridge for any additional Questions.

COMMON ASSOCIATED ANTI-SCALP WHEEL PARTS FOR PART NUMBER 108-5388 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

1. 108-5388– HEX HEAD BOLT(Retains the Anti-Scalp Wheel and Spanner to Mower Deck)x1 Per Anti-Scalp Wheel Set of 2
2. 1-603299– ANTI-SCALP WHEEL(Small Wheels Fastened to the Mower Deck and Aids in Helping the Mower Deck to Float Across Uneven Terrain, Helping to Eliminate Scalping)x2 Per 98-5967 Spanner Tube
3. 98-5967– ANTI-SCALP WHEEL SPANNER TUBE(Installed Through the Mower Deck Anti-Scalp Wheel and Between the Dual Mower Deck Fastening Ears/Bracket – Enables the Fasteners Bolt/Nut to Be Firmly Tightened Without Bending the Mower Deck Anti-Scalp Wheel Fastening Ears/Bracket Against the Anti-Scalp Wheel)x1 Per Anti-Scalp Wheel Set of 2
4. 104-8301– FLANGE LOCK NUT(Retains the Anti-Scalp Wheel and Spanner to Mower Deck)x1 Per Anti-Scalp Wheel

Specification

Model Fit:

TITAN & TITAN MAX

48 TITAN Standard, My-Ride (48 Newer/Current Models I-Beam Frame) 48 Current Models –(* Model Numbers 76401, 76411, 76420, 76425, 76448)

54 TITAN Standard, My-Ride (54 Newer/Current Models I-Beam Frame) 54 Late/CurrentModelsOnly – (* Model Numbers 76501, 76511, 76530, 76554)

60 TITAN, TITAN My-Ride, Titan ZXM 6075(60 Newer/Current Models I-Beam Frame) 60 Current Models – (* Model Numbers 76604, 76605, 76614, 76635, 76660)

60 TITAN MAX (60 Newer/Current Models I-Beam Frame) 60 Current Models – (* Model Numbers 76606, 76607, 76608, 76609, 76610)

TITAN HD

60 TITAN HD 1500 & HD 2000 (PRE – Current IBEAM Framing Tube Framing Models Only) –60″ Late Models / Tubed Framing- (* Model Numbers 74463, 74480)

60 TITAN HD 2500 Series (PRE – Current IBEAM Framing Tube Framing Models Only) 60 Early Models Only –(* Model Numbers 74470, 74471, 74472, 78472)

GRANDSTAND

60 GRANDSTAND (Standard) (* Model Numbers 72509, 72512, 72513, 72520, 74513, 74523, 74550, 74551, 74553, 74576, 74583, 79551, 79553)

60 GRANDSTAND (Multi-Force) (* Model Numbers 72523, 72524)

60 E – GRANDSTAND (Revolution) (* Model Numbers 18564)

52 GRANDSTAND (HDX) (* Model Numbers 72506)

60 GRANDSTAND (HDX) (* Model Numbers 72510, 72514)

72 GRANDSTAND (HDX) (* Model Numbers 72517)

Z-MASTER

CURRENT/LATE MODELS

Z MASTER 2000 MODELS (Current/Late IBEAM Framing Models) (MODEL NUMBERS 77281, 77283, 77285, 77288, 77291, 77294)

Z MASTER 3000 MODELS LATE MODELS (MODEL NUMBERS 72932, 72936, 72949, 72950, 72952, 72958, 72959)

Z MASTER 4000 MODELS CURRENT/LATE MODELS– Current IBEAM (MODEL NUMBERS 74000, 74002, 74004, 74010, 74015, 74020, 74022, 74024, 74035, 74050, 74052, 74054, 74055, 74057)

Z MASTER 5000 MODELS CURRENT/LATE MODELS (MODEL NUMBERS 72904, 72906, 72907, 7290
